MODEL:PD
AUTO POWDER DISPENSING SYSTEM
Introduction
Powder mate is a patented computer-controlled dispensing system that weighs powders and granules. It is advanced design and high precision scale provides weighing of both small and large quantities into the same container. Thus, eliminate the human errors happend during process. Precise weighing is a very important factor for shade control.

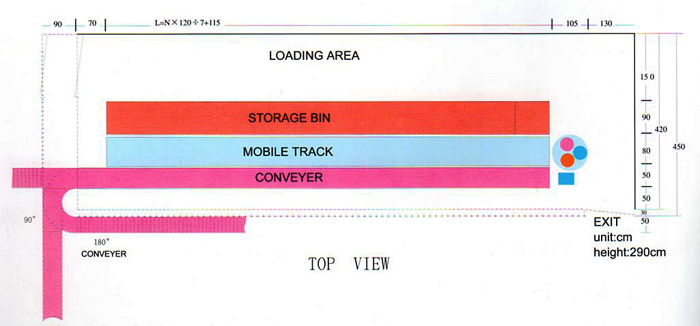

Structure
(Specifications are subject to change without notice)
Features
-
ECONOMICAL
-
RELIABLE
-
ACCURATE
-
FULL AUTOMATED COMPUTER CONTROLLED
-
FULL AUTOMATED
-
SIMPLE OPERATION
An integrated system compriess seven key modules.
The dyestuffs loading into bins by vacuum pump system with filter unit.
Emtpy bucket is being place on the conveyor by a robotic loading arm for the dispensing or the next recipe.
Screw and vibrator combination dosing device
As a dispense is completely,the weighing robot simultaneously picks up the bucket with the completed ingredients and moves it to the automatic conveyor.
After dispensing,bucket through an automatic label printing station which in the bucket for identification of the recipe and ingredients and quantities of each.
Provide continuously updated information about the amounts of dyestuff used and current quantity in the storage bins of the system.
Can set-up 5 stage different allowance of upper and lower limitation according to different weight range.
