MODEL:ALD

AUTO LIQUID DISPENSING & TRANSPORTATION SYSTEM

Benefits

  1. Precise weighing & transfer：
    Dispensing every chemical by weight with high precision.Then transfer to designate dye machine automatically.
  2. Eliminate mistake：
    Avoid every error possibilities in process of weighing and transfer chemical. Maintains high production quality and consistance.
  3. Cost saving：
    Economical chemical usage by elimination of waste.
  4. Environment approve：
    Compact design and limited space occuqied.The system can brings the environment cleaning and safety.
  5. Management report：
    Provide daily and monthly consumption static report.Detailed weighing record can be a part of procedure management.

Specifications

Structure

No. of chemical
4-30
Disoensung valve
SUS316 Pneumatic valve
Chenical supply
By high position storage tank(prepare by customer)
Control method
By PLC control
Frame material
SUS304 Rack with compacted plastic board
Computer for recipe station
IBM Compatible(prepare by customer)
Software
Windows
Utilities

Water:1"、Power380V,3P,50/60Hz,10A、Air:5kg/c㎡

Dimension

2810mm(L)×830mm(W)×1880mm(H) / 280kg appro

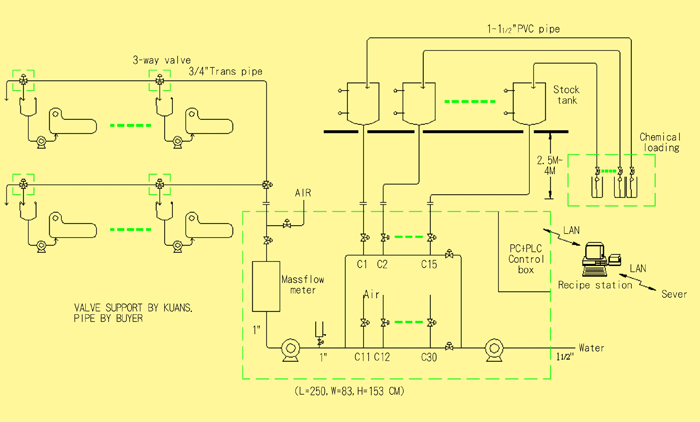

ald-11
(Specifications are subject to change without notice)
(Specifications are subject to change without notice)

Features

ald-03
ald-04
ald-05
ald-02
  1. Using massflow meter as measaring device.It is a reliable and accuracy instrument.
  2. By "Sandwith"Process to weigh & transfer chemicals.
  3. Three way valve plus main pipe conbimation minimum piping work.
  4. Clean up all valves and piping automatically after dispensing.
  5. Can link major dye machine supervising system to prepare the chemicals.
  6. Equipped with a UPS. Avoid interrupting the weighing process in case of power shutdown in sudden.
  7. Provide the weighing report as well as consumption report.
  8. Compact design,limit space need,Simple piping work.
